Object detection is the second type of problem we will be solving in this blog using lightning and pascal voc. This problem is very common because it allow to locate a variable number of objects in images.

Since it is used in case of autonomous driving, real time object counting object detection architectures are grouped into two categories. The real time object detection where the boss is the YOLO version 11 at the time i write this article. The more recent networks that can fight with yolo in RTOD (Real time object detection) is the D-Fine architecture which is an improved DETR.

We implemented it in this article, we chose to train this architecture in lightning since the training loop can be re-used with other models and dataset. I don’t know what is the best training paradigm but i want one that keeps as agnostic as possible to any framework, and for me lighting allow strong customization and proximity to pure torchscript while allowing easy multi device training and metrics logging etc..

Data

We will model pascal voc images in this project because its very easily accessible from torchvision repos.

from torchvision.datasets import VOCDetection
from torchvision.transforms import v2
import matplotlib.pyplot as plt
import numpy as np
from torch.utils.data import DataLoader
import torch
from omegaconf import OmegaConf
from torchvision.ops import box_convert
from torchvision.utils import draw_bounding_boxes
import albumentations as A
from transformers import DFineForObjectDetection, AutoImageProcessor
from albumentations.pytorch import ToTensorV2
from torchvision.ops import batched_nms
import torchmetrics
import lightning as L
from torchvision.models.detection import fasterrcnn_mobilenet_v3_large_fpn
from typing import Dict, List, Optional

/home/arthings/big_partition/projet/myblog/.venv/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning:

IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html

/home/arthings/big_partition/projet/myblog/.venv/lib/python3.10/site-packages/albumentations/__init__.py:28: UserWarning:

A new version of Albumentations is available: '2.0.8' (you have '2.0.5'). Upgrade using: pip install -U albumentations. To disable automatic update checks, set the environment variable NO_ALBUMENTATIONS_UPDATE to 1.

d-fine expect bbox in coco format so we convert it in the get_item part.

categories = ['pottedplant', 'bottle', 'chair', 'diningtable', 'person', 'car', 'train', 'bus', 'bicycle', 'cat', 'aeroplane', 'tvmonitor', 'sofa', 'sheep', 'dog', 'bird', 'motorbike', 'horse', 'boat', 'cow', "bg"]


def unpack_box(box_dict:Dict):
    """
    Unpack the box dictionary into a list of coordinates
    """
    return torch.tensor(np.array([
        box_dict["xmin"],
        box_dict["ymin"],
        box_dict["xmax"],
        box_dict["ymax"]
    ], dtype = float))

def annotation_to_torch(target:Dict):
    rep = {}
    detections = target["annotation"]["object"]

    rep["labels"] = np.array([categories.index(i["name"]) for i in detections])
    # xmin ymin xmax ymax
    rep["boxes"] = torch.stack([unpack_box(i["bndbox"]) for i in detections])

    return rep

image_processor = AutoImageProcessor.from_pretrained("ustc-community/dfine_x_coco")

class MyVoc(VOCDetection):
    def __getitem__(self, index):
        image, target = super().__getitem__(index)
        # Apply your transformations here
        target = annotation_to_torch(target)

        transform = A.Compose([
            A.PadIfNeeded(500,500),
            A.HorizontalFlip(),
            A.RandomCrop(400,400),
            A.Resize(224, 224),
            A.Normalize(normalization="min_max"),
            ToTensorV2()
        ],
        bbox_params=A.BboxParams(
            format='pascal_voc', # Specify input format
            label_fields=['class_labels'],
            filter_invalid_bboxes=True)
        )

        transformed = transform(
            image=np.array(image),
            bboxes=target["boxes"],
            class_labels=target["labels"]
        )

        transformed["labels"] = transformed["class_labels"]
        transformed["boxes"] = transformed["bboxes"]
        transformed.pop("bboxes")

        image = transformed.pop("image")
        transformed["boxes"] = box_convert(
            torch.from_numpy(transformed["boxes"],
            ),
            "xyxy",
            "xywh",).float()
        transformed["labels"] = torch.from_numpy(transformed["labels"])
        transformed["class_labels"] = torch.from_numpy(transformed["class_labels"])
        return image.float(), transformed

    def draw_item(self, index:Optional[int] = None, n=5):
        if index is None:
            index = np.random.randint(0, len(self))

        image, labels = self[index]


        with_boxes = draw_bounding_boxes(
            image =  image,
            boxes= box_convert(labels["boxes"], "xywh", "xyxy"),
            labels = [categories[i] for i in labels["labels"]],
            colors = "red"

        )


        plt.figure(figsize=(10, 10))
        plt.imshow(with_boxes.permute(1, 2, 0).numpy())
        plt.axis('off')
        plt.show()
        return

Using a slow image processor as `use_fast` is unset and a slow processor was saved with this model. `use_fast=True` will be the default behavior in v4.52, even if the model was saved with a slow processor. This will result in minor differences in outputs. You'll still be able to use a slow processor with `use_fast=False`.

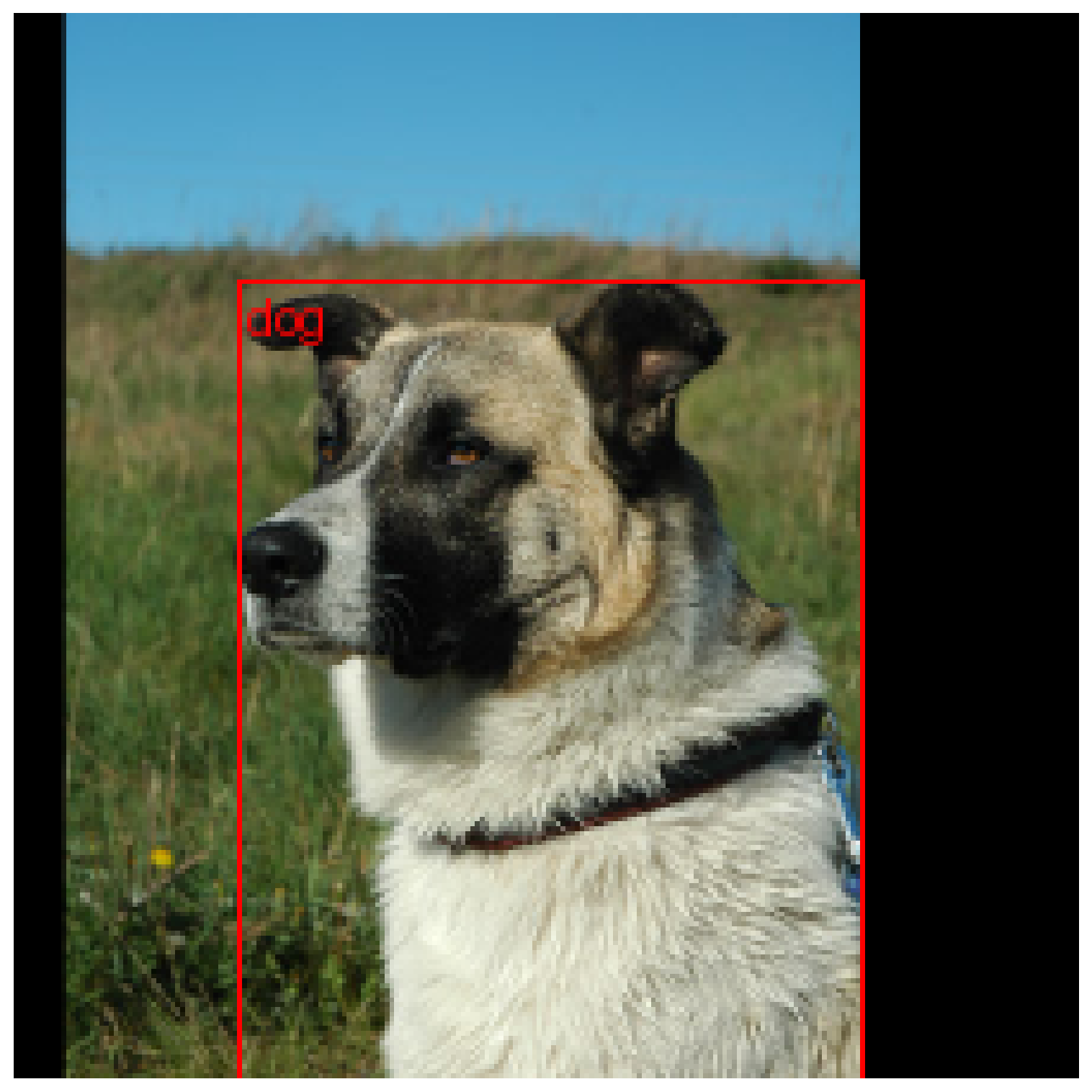

Nothing special here, we show what the data looks like.

ds = MyVoc(
    root = "./data",
    download = False,
    image_set="train"
)
val_ds = MyVoc(
    root = "./data",
    download = False,
    image_set="val",
)
ds.draw_item()

Modeling

Modeling part is here, whith the lightning module.

Code

config = OmegaConf.create({
    "lr": 1e-4,
    "batch_size":2,
    "epochs":3,
    "world_size":1
})
def apply_nms(preds:Dict, iou_thr:float = .5):
    nms_indices = batched_nms(
        preds["boxes"],
        scores = preds["scores"],
        idxs=preds["labels"],
        iou_threshold=iou_thr
    )
    preds_nms = {}
    preds_nms["boxes"] = preds["boxes"][nms_indices,:]
    preds_nms["scores"] = preds["scores"][nms_indices]
    preds_nms["labels"] = preds["labels"][nms_indices]

    # high_scores_indices = preds_nms["scores"] > .3
    # preds_nms["boxes"] = preds_nms["boxes"][high_scores_indices]
    # preds_nms["scores"] = preds_nms["scores"][high_scores_indices]
    # preds_nms["labels"] = preds_nms["labels"][high_scores_indices]

    return preds_nms

class odModule(L.LightningModule):
    def __init__(self, config, categories:List[str], nms_thr:float = .5):
        super().__init__()
        # if config.checkpoint is not None:
        # print(f"checkpoint from {config.checkpoint}")
        num_classes = len(categories)
        self.categories = categories

        self.nms_thr = nms_thr
        self.config = config
        # self.model = fasterrcnn_mobilenet_v3_large_fpn(pretrained = False, num_classes=num_classes)
        self.model = DFineForObjectDetection.from_pretrained(
            "ustc-community/dfine_x_coco",
            id2label= {i:cat for i,cat in enumerate(categories)},
            label2id={cat:i for i,cat in enumerate(categories)},
            ignore_mismatched_sizes=True,
        )

        metrics = torchmetrics.MetricCollection(
            [
                torchmetrics.detection.mean_ap.MeanAveragePrecision(
                    # extended_summary=True,
                    iou_thresholds=np.linspace(0,1,20).tolist(),
                    class_metrics=True,
                    iou_type="bbox",
                ),
            ]
        )
        self.val_metrics = metrics.clone(prefix="Validation/")
        self.test_metrics = metrics.clone(prefix="Test/")

        self.save_hyperparameters(ignore=["train_ds"])

    @staticmethod
    def prepare_batch(batch):
        images, targets = batch
        return images, targets

    def forward(self, x, y=None):
        if y is not None:
            return self.model(pixel_values = x, labels = y)
        else:
            preds = self.model(x)
            n, c, h, w = x.shape
            preds = image_processor.post_process_object_detection(
                preds,
                target_sizes=[(h,w) for _ in range(n)],
                threshold=0.5)
            return preds

    def predict(self, x):
        """Forward the model then run NMS (for evaluation)

        Args:
            x (_type_): _description_

        Returns:
            _type_: _description_
        """
        preds:List = self(x)
        # preds_nms = [apply_nms(i, self.nms_thr) for i in preds]
        return preds


    def training_step(self, batch, batch_idx):
        img_b, target_b = self.prepare_batch(batch)
        bs = len(img_b)

        dfine_output = self(img_b, target_b)

        self.log_dict(
            dfine_output.loss_dict,
            on_step=False,
            on_epoch=True,
            sync_dist=True,
            batch_size=bs,
            prog_bar=True,
        )

        return {"loss": dfine_output.loss}

    def validation_step(self, batch, batch_idx):
        img_b, target_b = self.prepare_batch(batch)
        output_nms = self.predict(img_b)

        self.val_metrics(output_nms, target_b)
        return

    def on_validation_epoch_end(self):

        m = self.val_metrics.compute()
        m_single= {i:j for i,j in m.items() if j.nelement() ==1}

        self.log_dict(m_single, on_epoch=True, sync_dist=False)

        for i, class_id in enumerate(m["Validation/classes"]):
            self.log(f"Validation/MAP {self.categories[class_id]}", m["Validation/map_per_class"][i])

        self.val_metrics.reset()
        return

    def test_step(self, batch, batch_idx):
        img_b, target_b = self.prepare_batch(batch)

        output_nms = self.predict(img_b)

        self.test_metrics(output_nms, target_b)
        return

    def on_test_epoch_end(self):
        m = self.test_metrics.compute()
        m_single= {i:j for i,j in m.items() if j.nelement() ==1}

        self.log_dict(m_single, on_epoch=True, sync_dist=False)

        for i, class_id in enumerate(m["Test/classes"]):
            self.log(f"Test/MAP {self.categories[class_id]}", m["Test/map_per_class"][i])

        self.test_metrics.reset()

        return

    def configure_optimizers(self):
        optimizer = torch.optim.Adam(
            self.parameters(),
            lr=self.config.lr,
            weight_decay=1e-4 * self.config.batch_size / 16,
        )

        # scheduler1 = torch.optim.lr_scheduler.CosineAnnealingLR(
        #     optimizer, T_max=scheduler_nsteps, eta_min=self.config.lr / 10
        # )

        # sched_config1 = {"scheduler": scheduler1, "interval": "epoch"}


        return [optimizer]#, [sched_config1]

model = odModule(
    config,
    categories
)

Some weights of DFineForObjectDetection were not initialized from the model checkpoint at ustc-community/dfine_x_coco and are newly initialized because the shapes did not match:
- model.decoder.class_embed.0.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.decoder.class_embed.0.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
- model.decoder.class_embed.1.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.decoder.class_embed.1.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
- model.decoder.class_embed.2.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.decoder.class_embed.2.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
- model.decoder.class_embed.3.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.decoder.class_embed.3.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
- model.decoder.class_embed.4.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.decoder.class_embed.4.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
- model.decoder.class_embed.5.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.decoder.class_embed.5.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
- model.denoising_class_embed.weight: found shape torch.Size([81, 256]) in the checkpoint and torch.Size([22, 256]) in the model instantiated
- model.enc_score_head.bias: found shape torch.Size([80]) in the checkpoint and torch.Size([21]) in the model instantiated
- model.enc_score_head.weight: found shape torch.Size([80, 256]) in the checkpoint and torch.Size([21, 256]) in the model instantiated
You should probably TRAIN this model on a down-stream task to be able to use it for predictions and inference.

def collate_fn(batch):
    # Separate the images and targets
    images = []
    targets = []

    for image, target in batch:
        images.append(image)  # Assuming each item has an 'image' key
        targets.append(target)  # Assuming each item has a 'target' key

    # Stack images into a single tensor
    images = torch.stack(images, dim=0)

    # Convert targets to a list of dictionaries or tensors
    # This depends on how your targets are structured
    # For example, if targets are dictionaries with bounding boxes and labels
    return images, targets
train_loader = DataLoader(
    ds,
    batch_size = 2,
    shuffle = True,
    collate_fn = collate_fn
)
val_loader = DataLoader(
    val_ds,
    batch_size = 2,
    shuffle = False,
    collate_fn = collate_fn
)
im, tar = next(iter(train_loader))

tar

[{'class_labels': tensor([11, 11]),
  'labels': tensor([11, 11]),
  'boxes': tensor([[108.6400,  52.0800,  59.3600,  57.6800],
          [ 77.2800,   0.0000,  55.4400,   1.6800]])},
 {'class_labels': tensor([16,  4]),
  'labels': tensor([16,  4]),
  'boxes': tensor([[ 17.3600,  68.8800, 138.3200,  98.5600],
          [  0.0000,  37.5200, 131.6000, 122.6400]])}]

Training

All the training is shown here. The full training is happening here.

the full training has not been done yet but no bug has been encountered in first batches.

model.train()
trainer=  L.Trainer(
    max_epochs=3,
    precision = "16-mixed",
    enable_checkpointing=True,
    num_sanity_val_steps=2,
    log_every_n_steps=50,
    check_val_every_n_epoch=1,
)

# trainer.fit(model, train_loader, val_loader)

Using 16bit Automatic Mixed Precision (AMP)
Using default `ModelCheckpoint`. Consider installing `litmodels` package to enable `LitModelCheckpoint` for automatic upload to the Lightning model registry.
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
